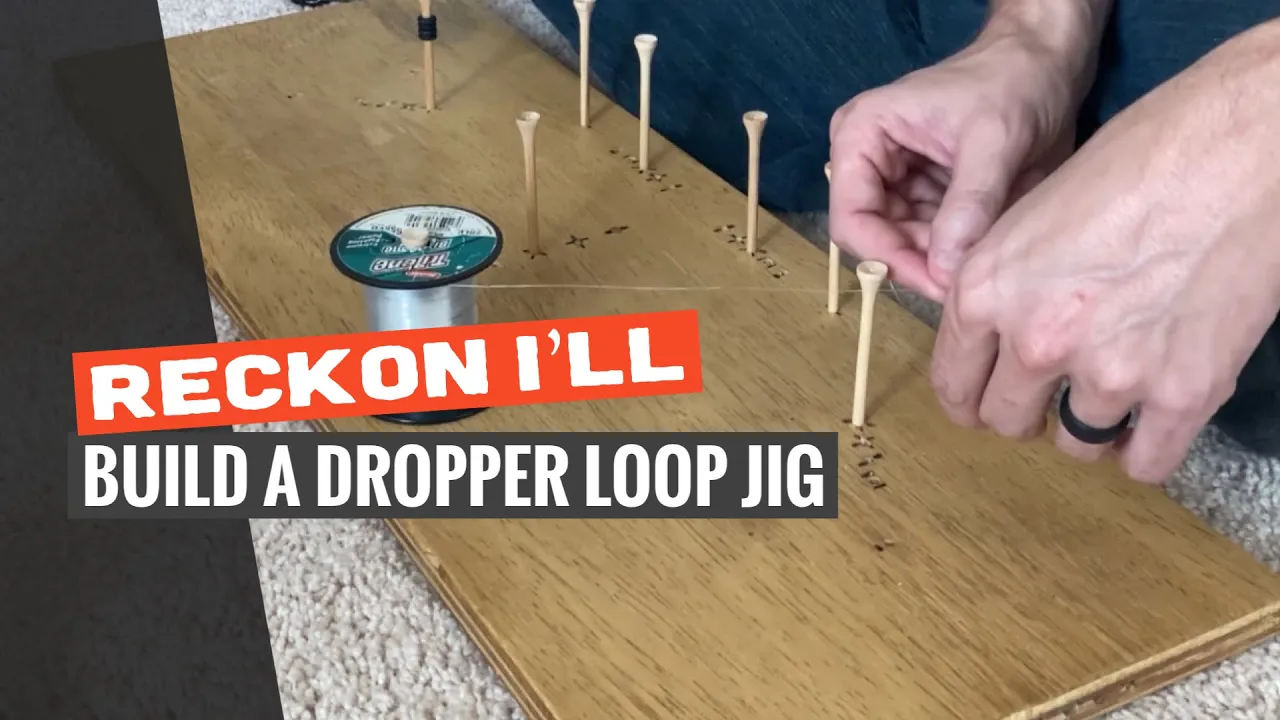

DIY Dropper Loop Board: Tying Uniform Surf Fishing Rigs

Tying uniform surf fishing rigs by hand can be a chore, especially when trying to keep dropper loops consistent for species like pompano or whiting. Using a board with fixed T-pins and measured symbols makes it foolproof to crank out a dozen identical leaders quickly. While the concept of a dropper loop board isn't novel, this design uses adjustable pins to create specific loop sizes and spacing every time.

Materials Needed

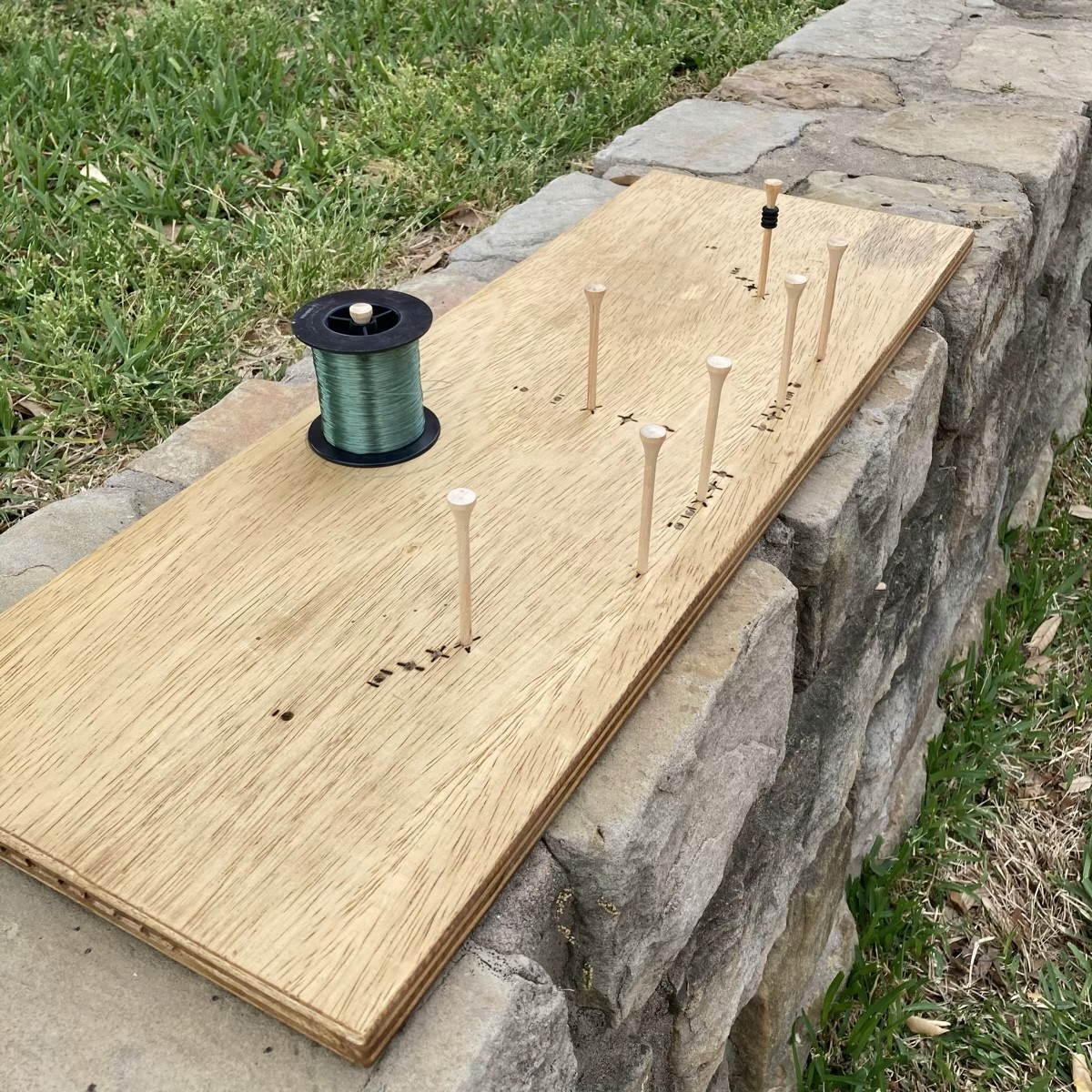

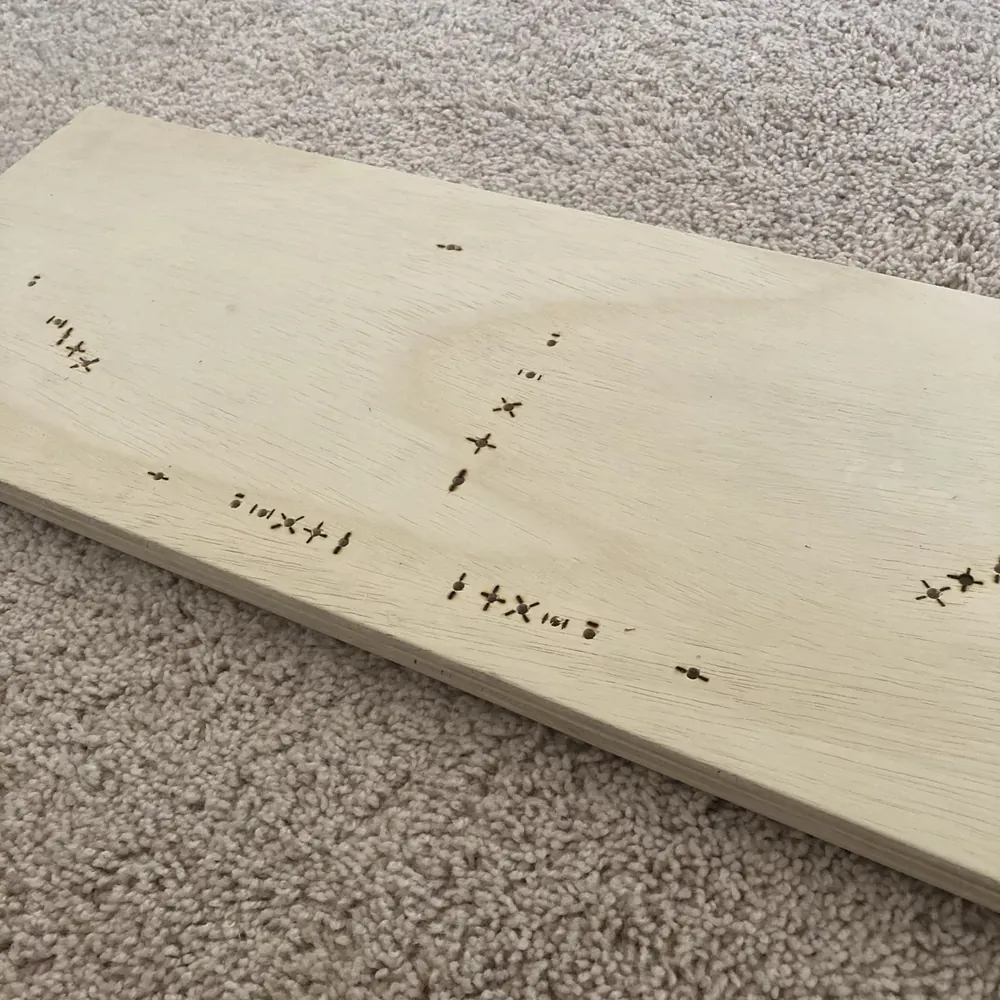

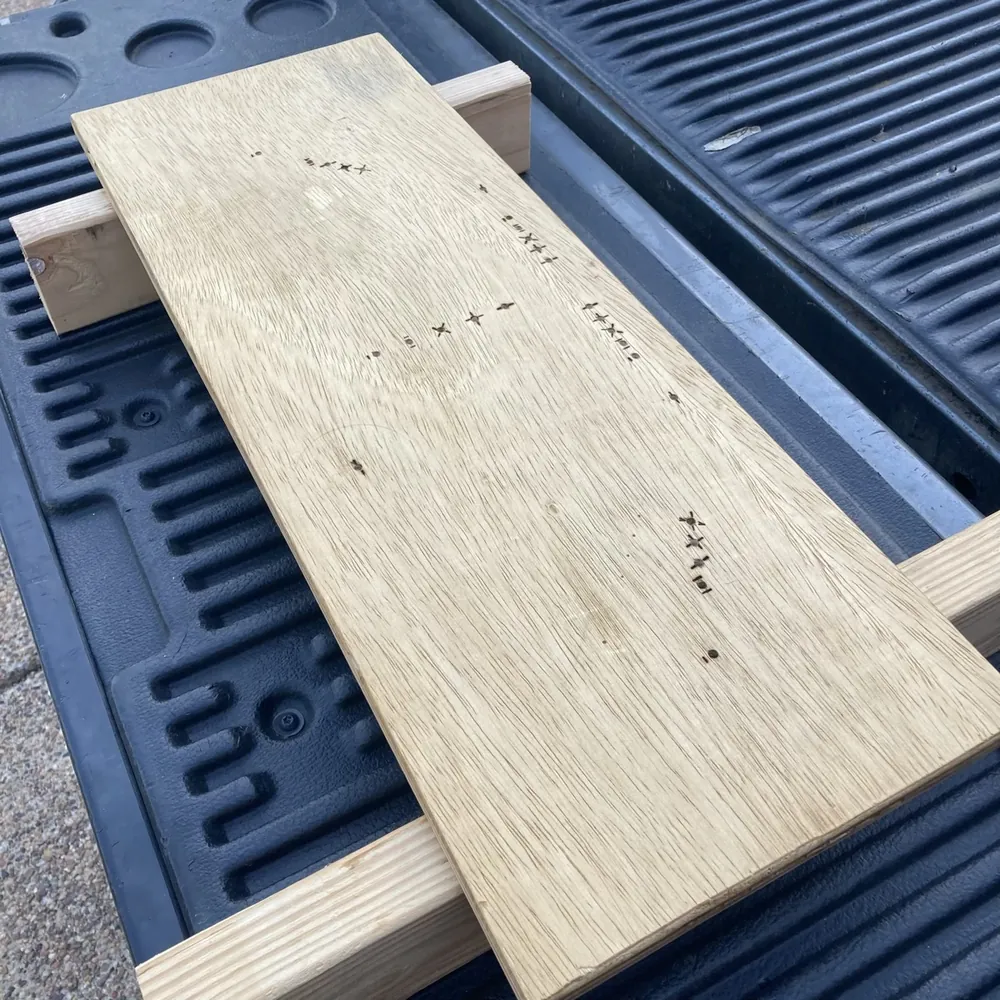

DIY Dropper Loop Board: Marked with symbols (like "X") for different loop sizes.

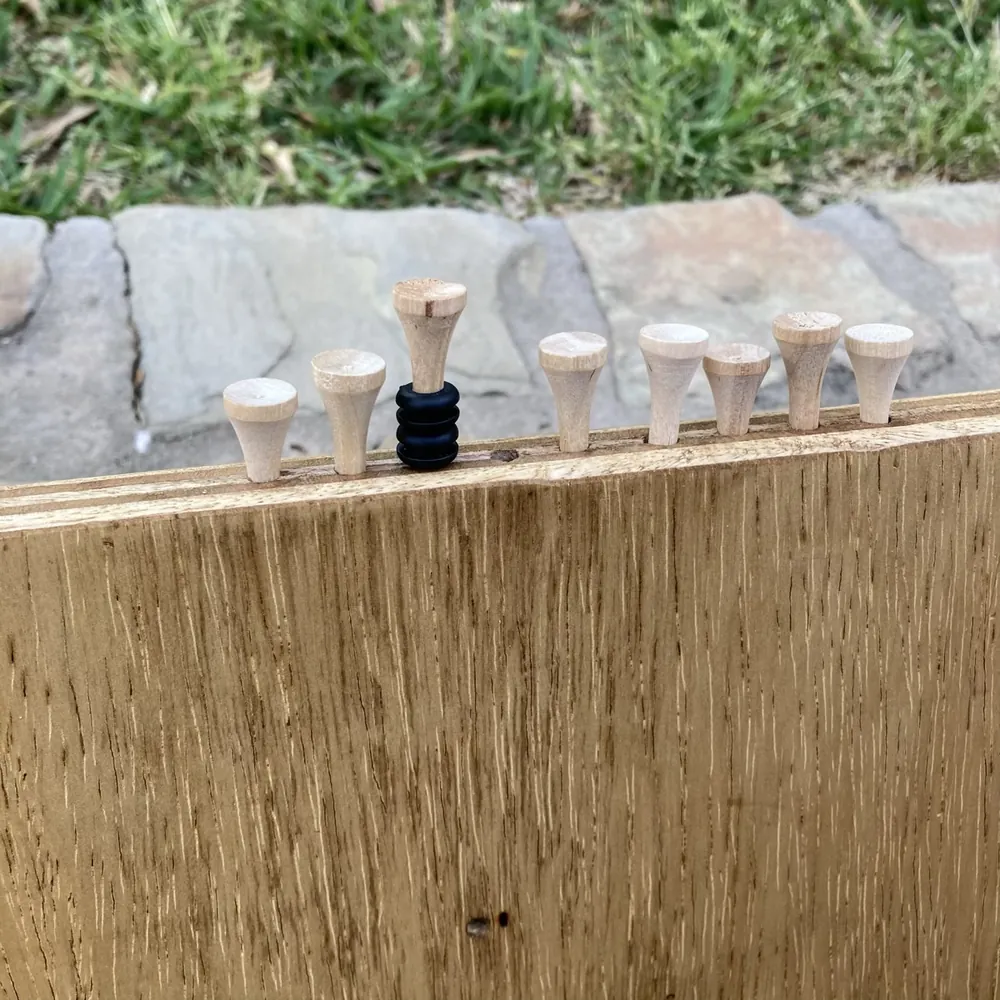

Adjustable T-Pins: Includes at least one pin with grommets to act as a line anchor.

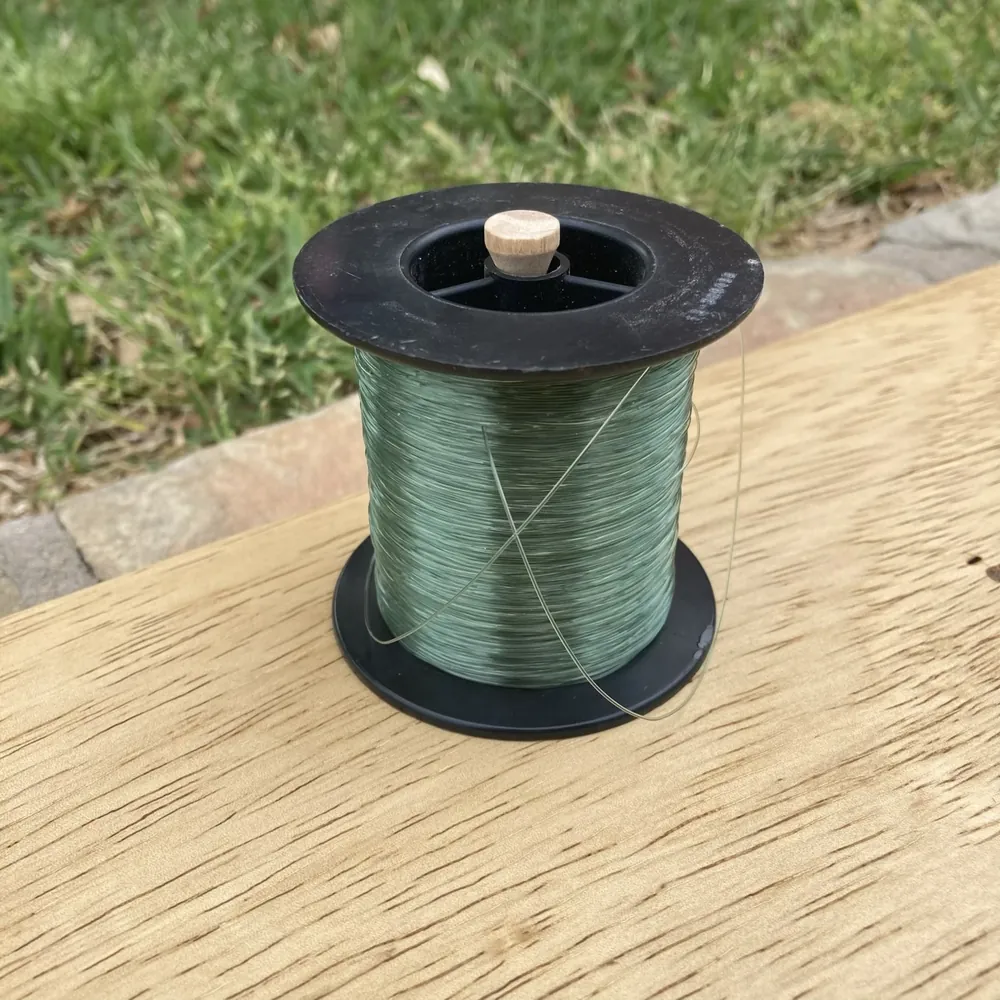

Monofilament or Fluorocarbon Leader: Standard 20-40lb test. Smaller spools of fluorocarbon work well with shorter T-pins for clear water conditions.
Pyramid Sinker: For the terminal end of the rig.

Step 1: Set Up the Board

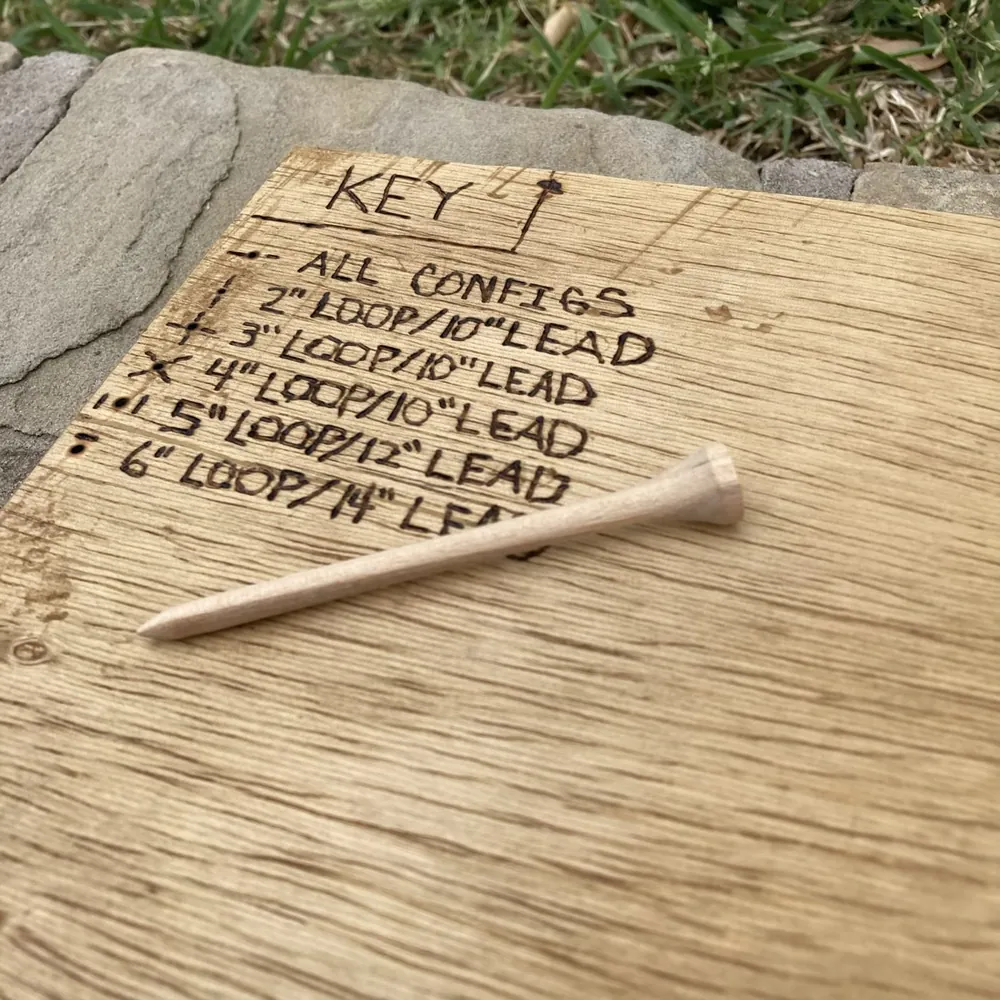

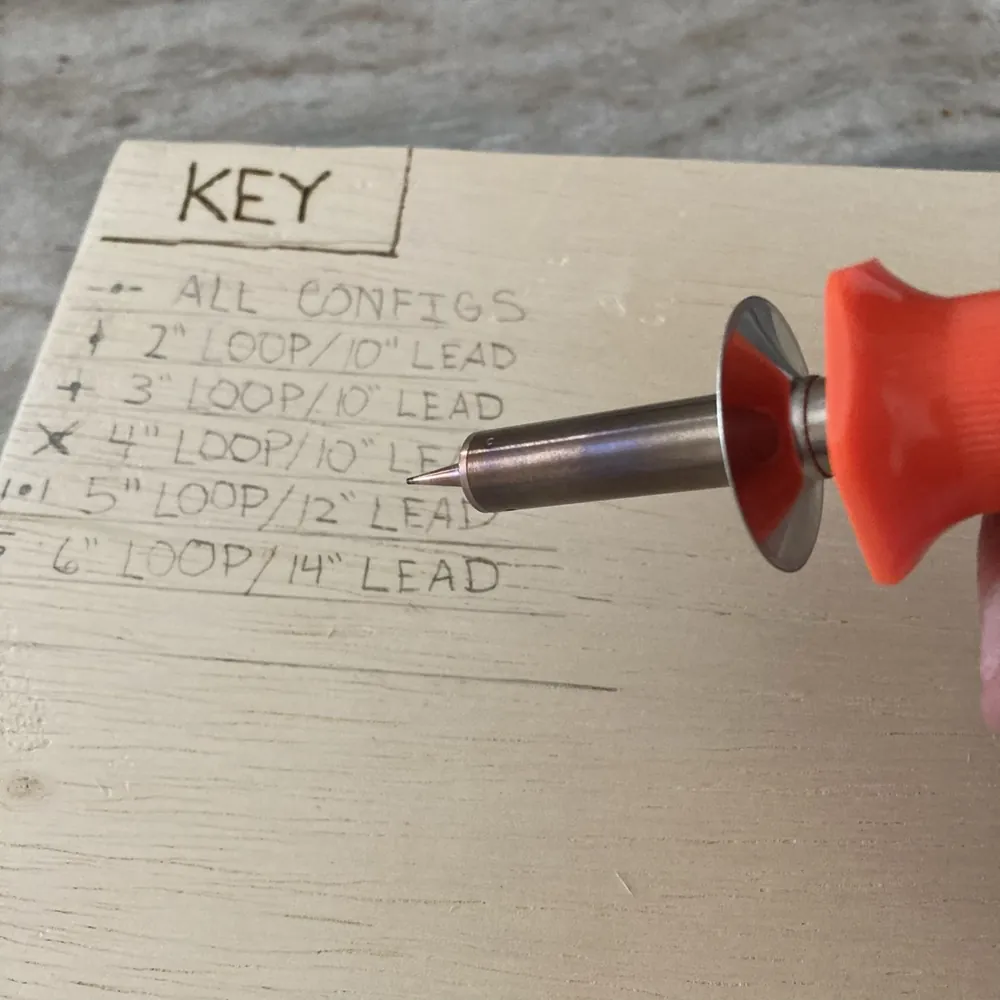

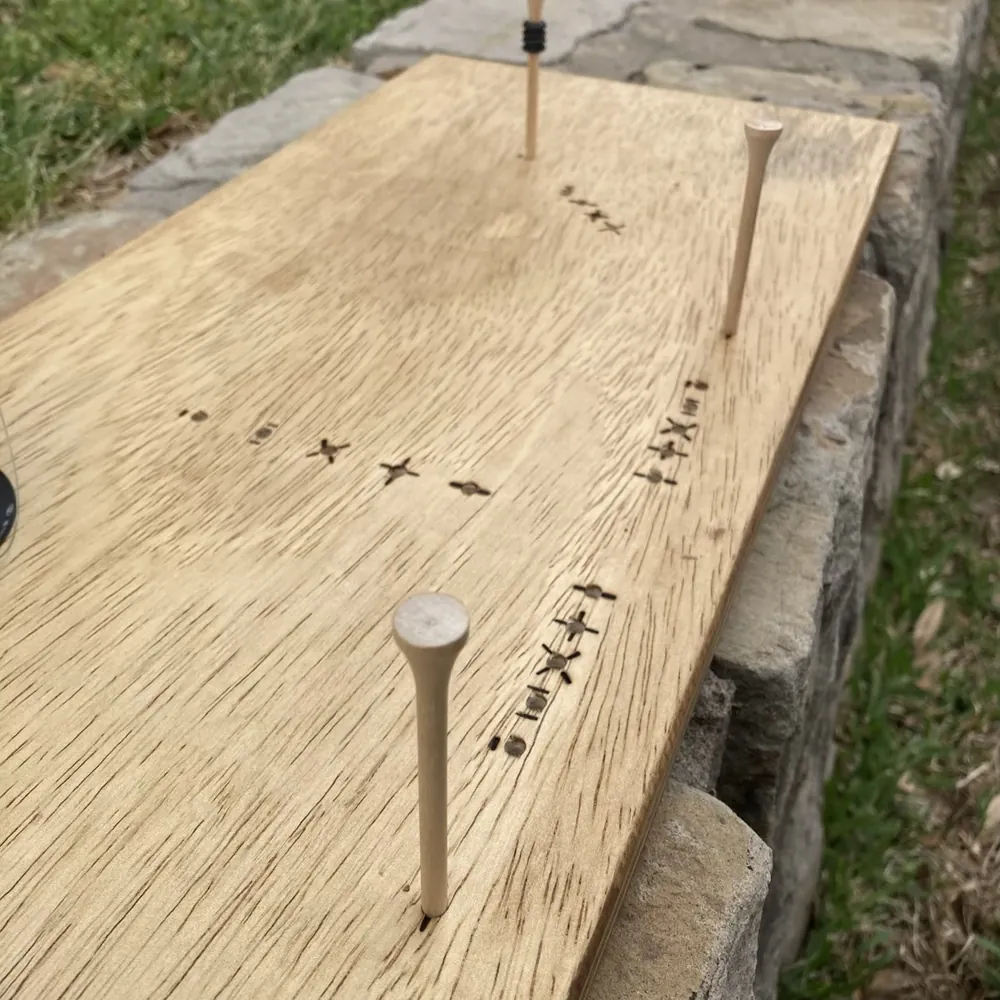

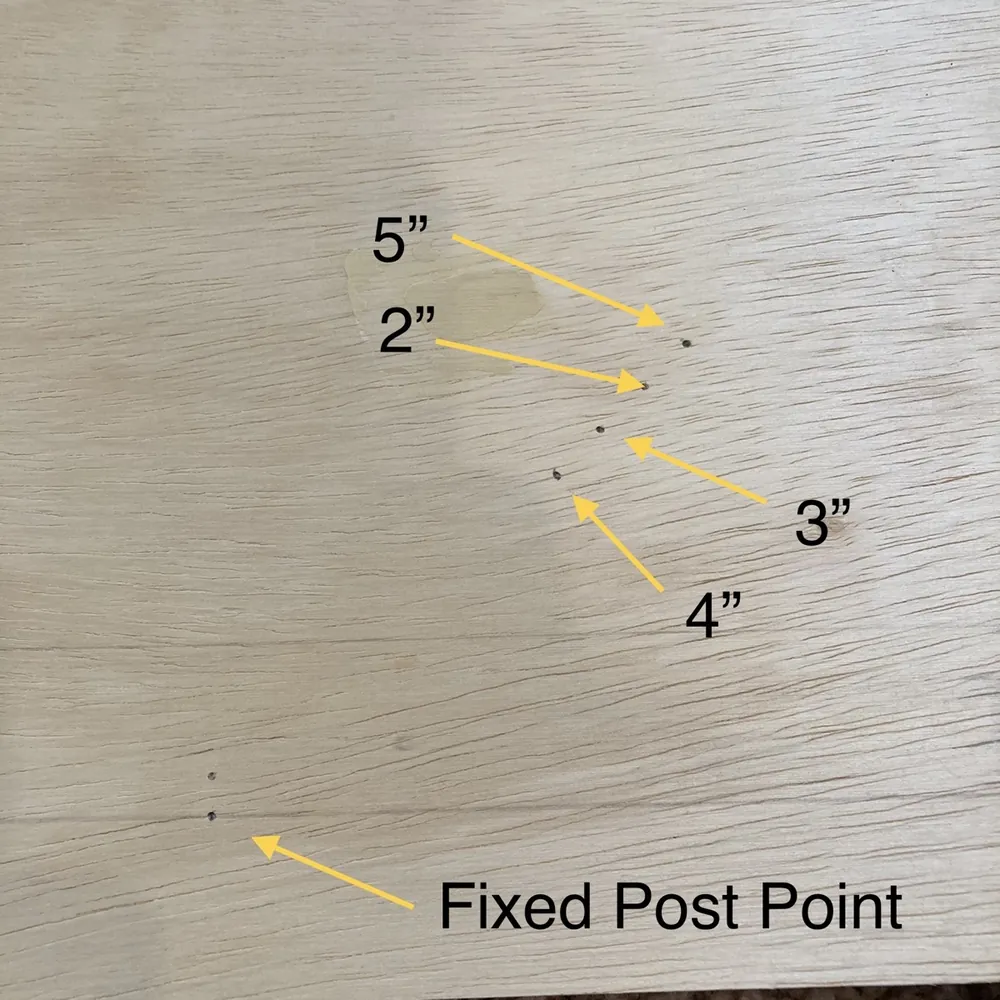

Select Loop Size: Choose the symbols on the board that correspond to your desired size. For a 4-inch loop with 10-inch spacing, insert T-pins into all holes marked with an "X".
Insert Fixed Pins: Place T-pins into the points on the board that always require them, regardless of loop size. [00:01:28]

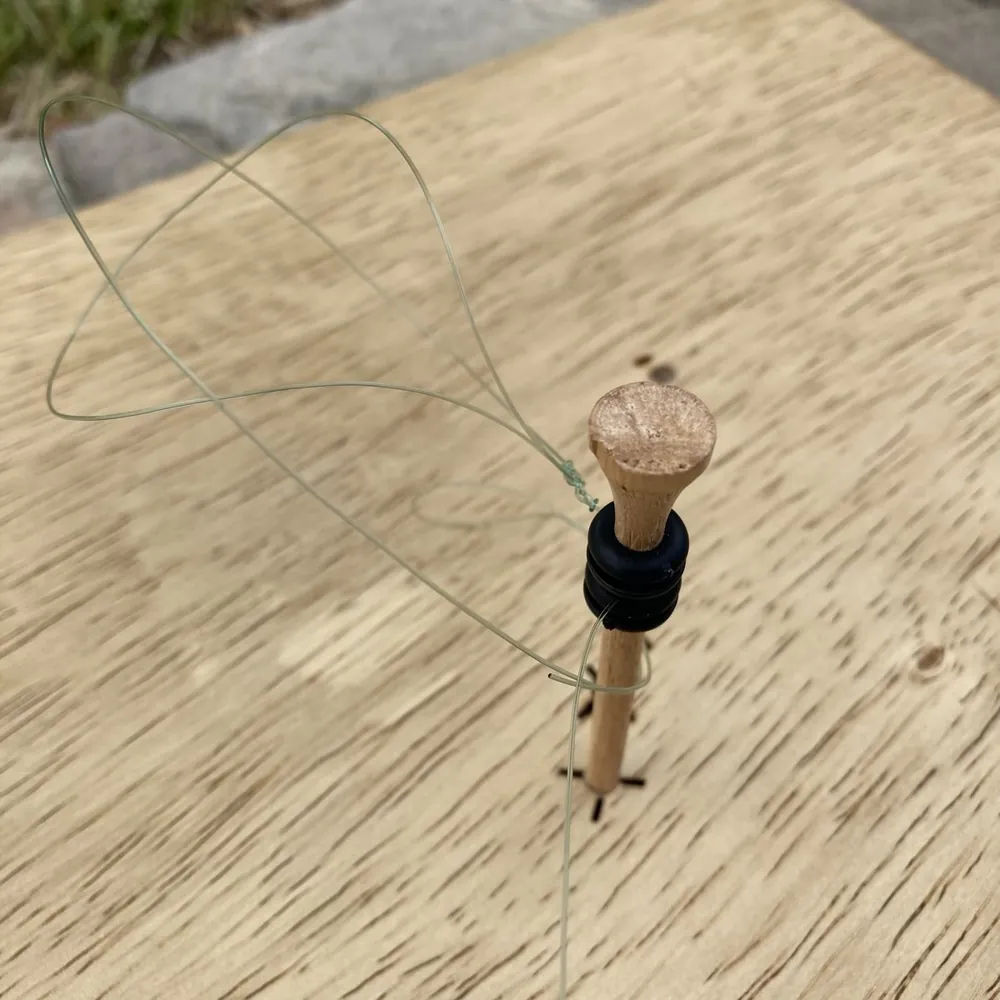

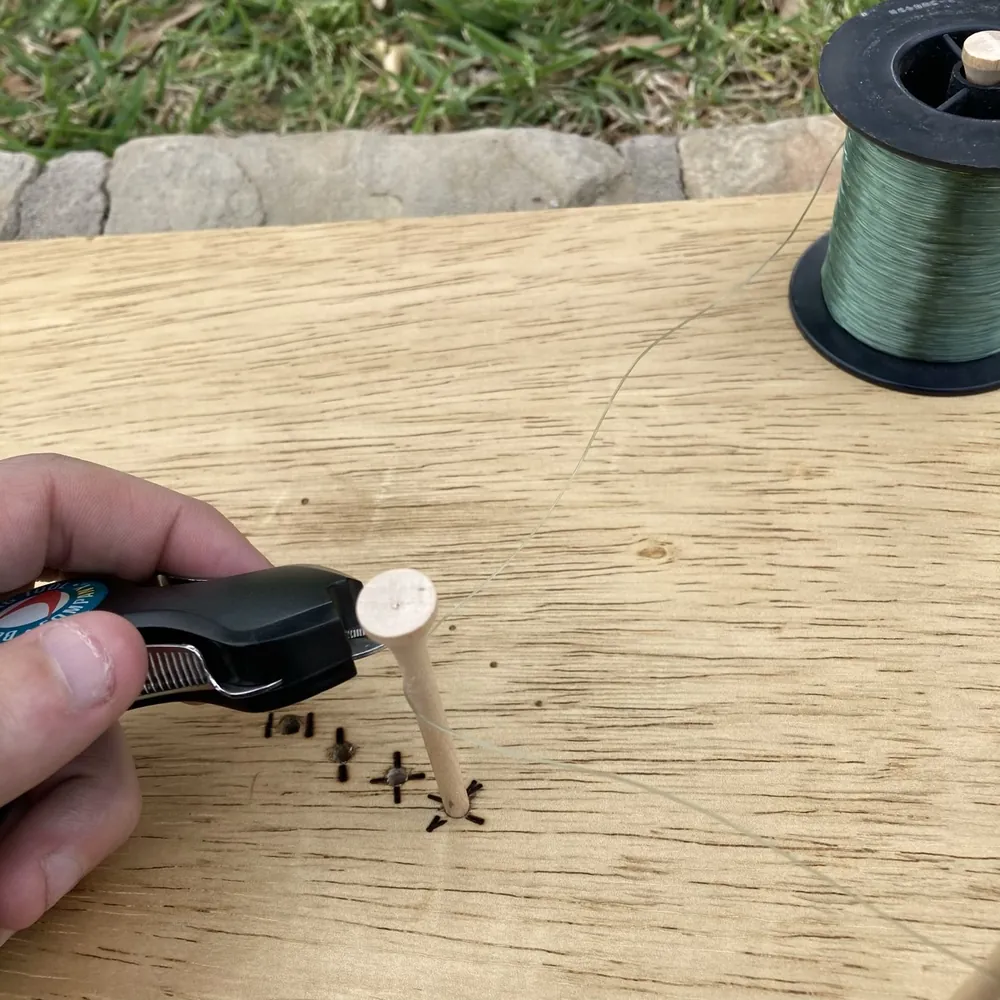

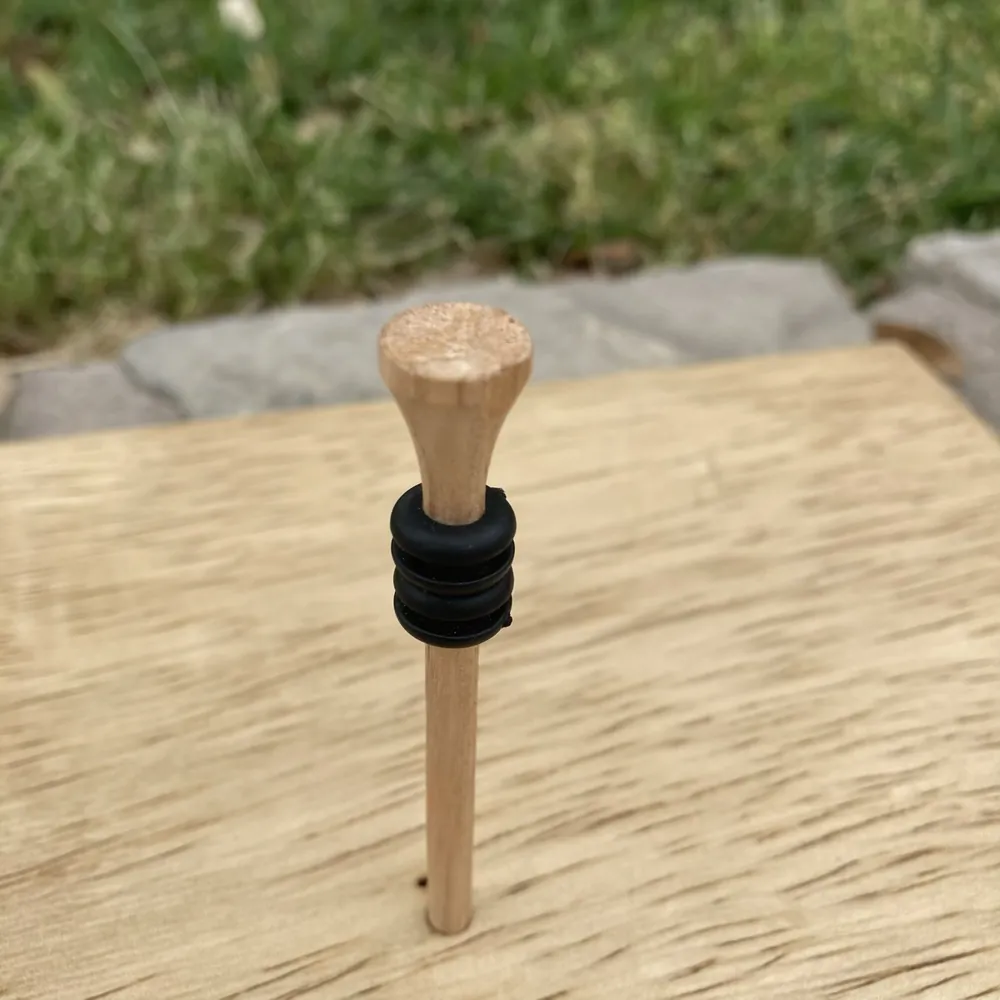

Insert Anchor Pin: On the far right, insert the T-pin with grommets to hold the line steady while you work. [00:01:16]

Step 2: Establish the Sinker Knot

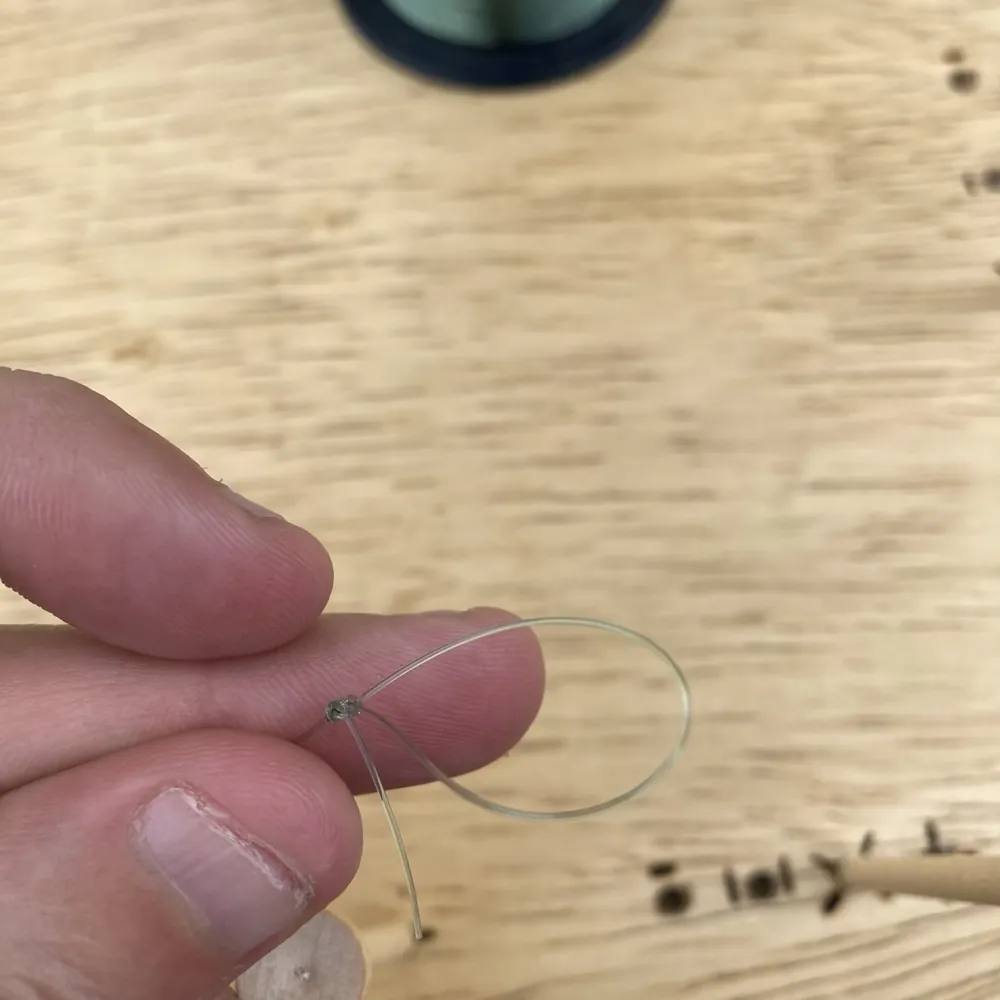

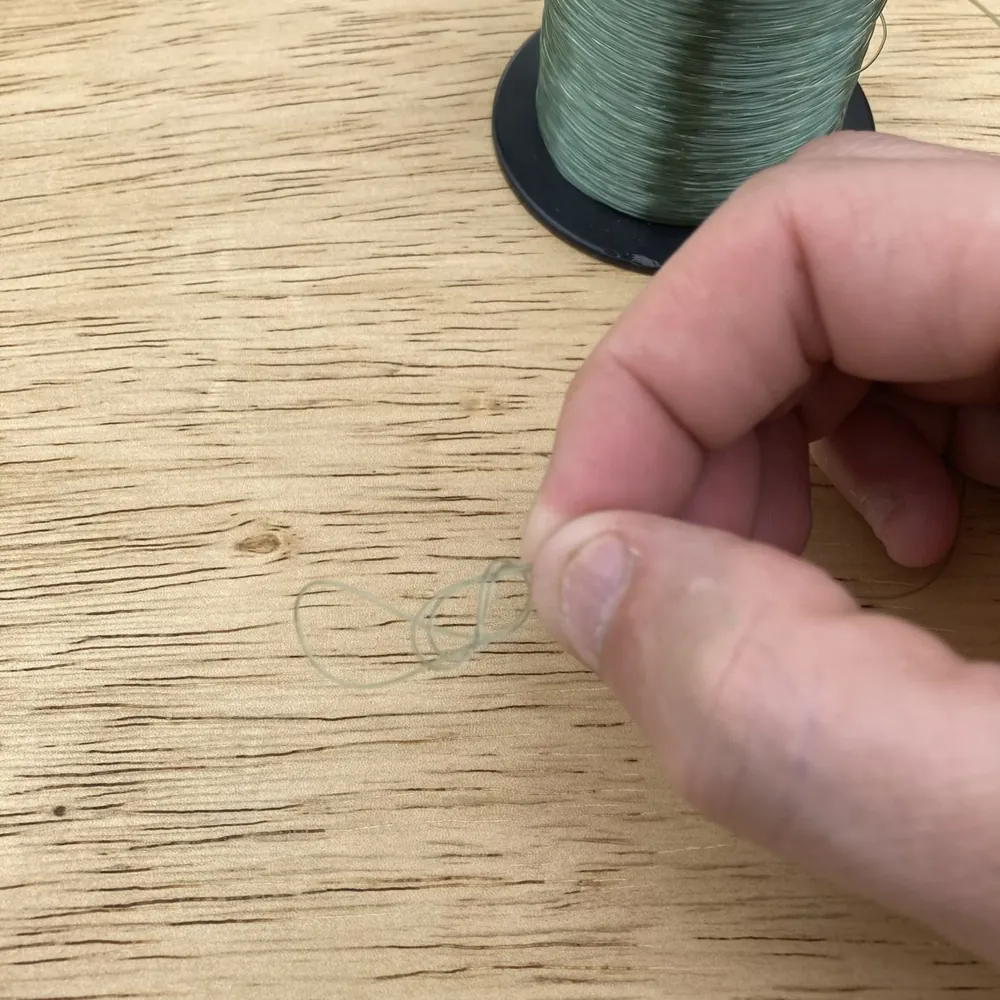

Before forming loops, pull a length of line from the spool and tie a figure-eight knot at the tag end. This loop will securely hold your pyramid sinker. [00:02:12]

Step 3: Route the Line

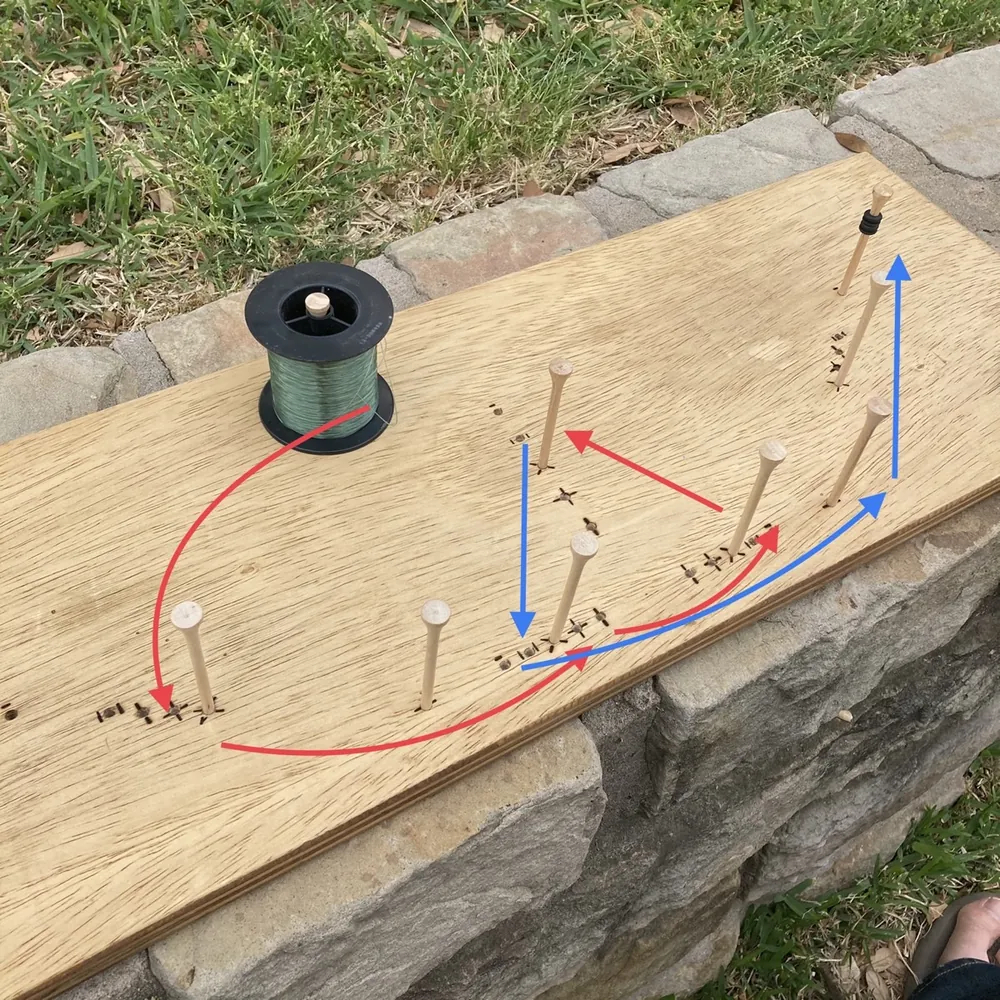

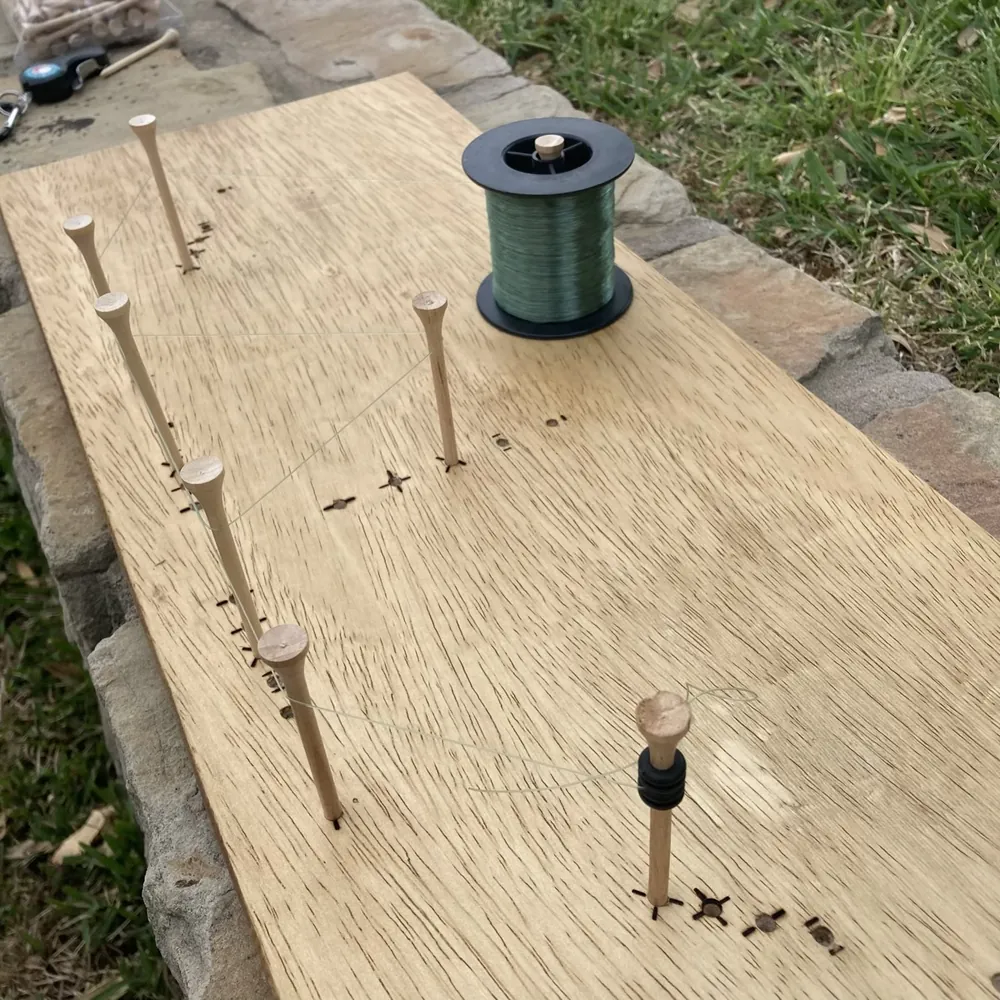

Pull the line from the spool and route it around the six perimeter T-pins. [00:02:37]

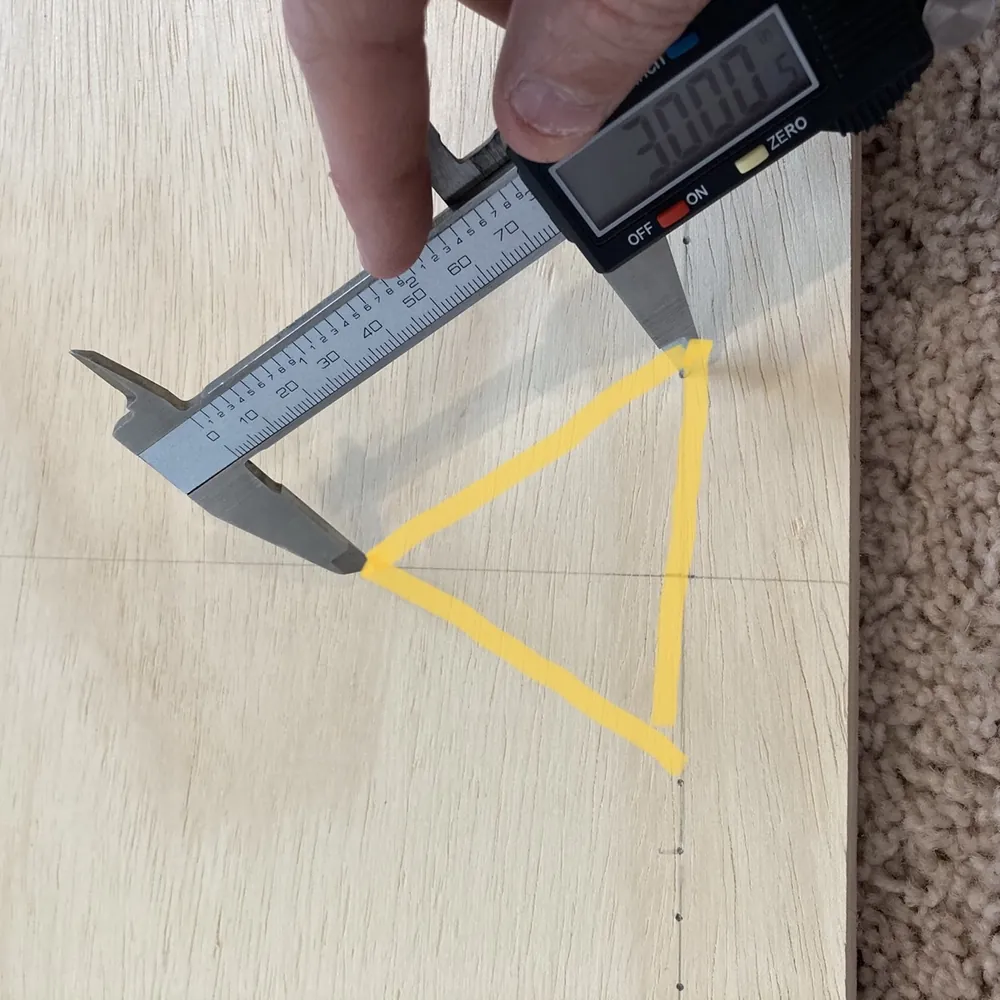

When you reach the center triangle, go around the top triangle pin. [00:02:43]
Pull the line across and secure it between the two grommets on the anchor pin. [00:02:47]

Step 4: Form the Dropper Loop

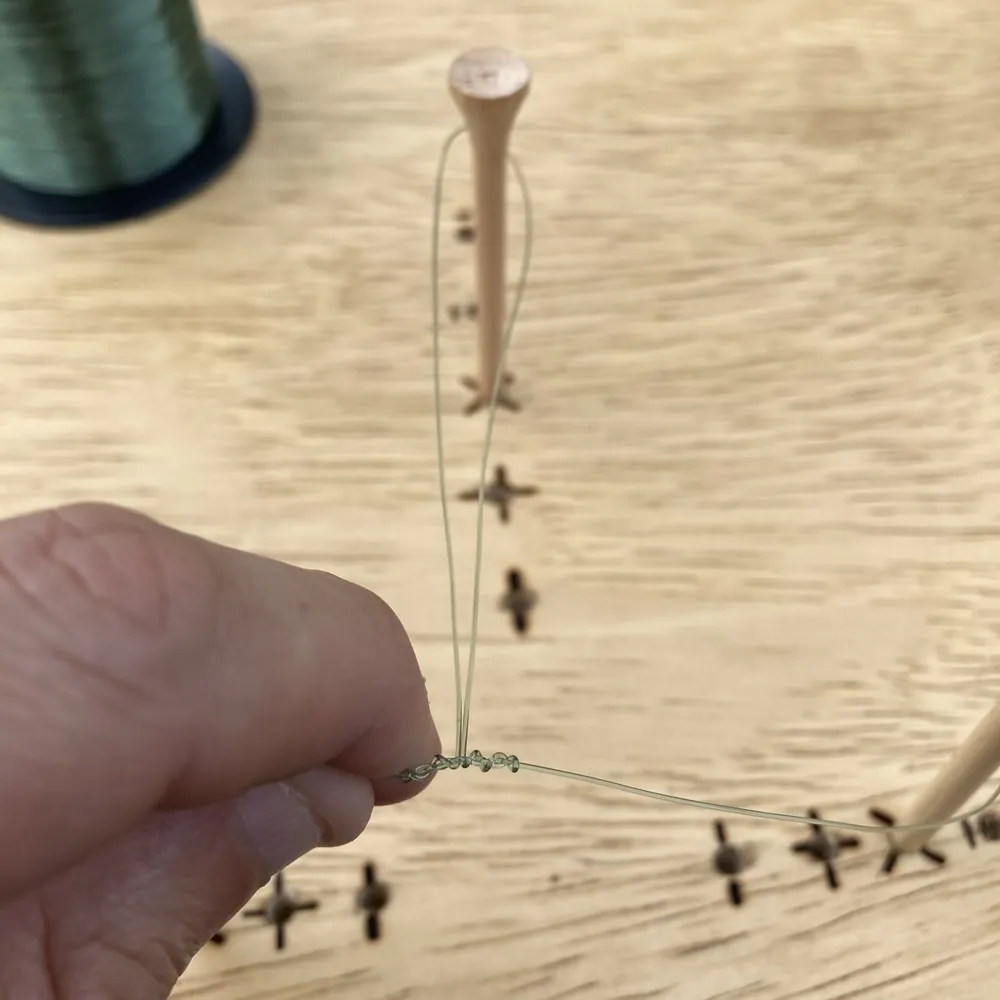

Twist: Twist the two parallel strands together six times. [00:03:11]

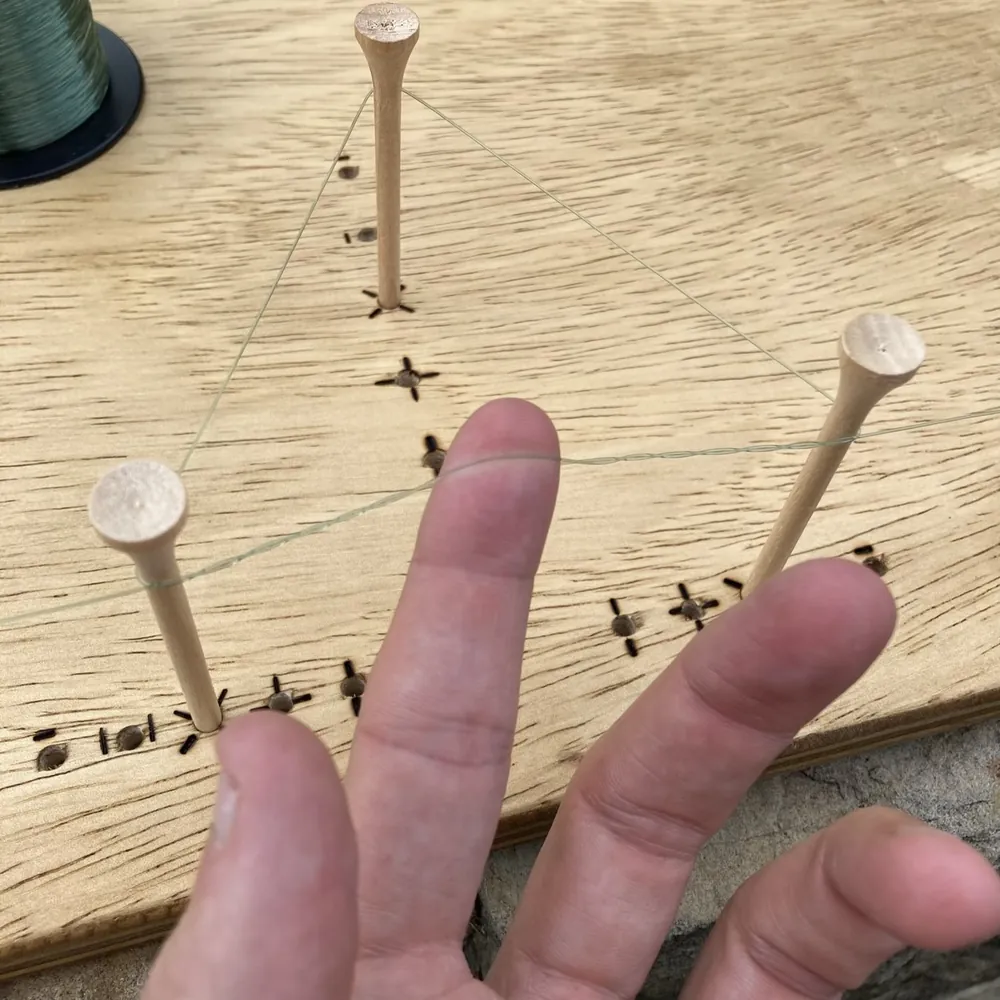

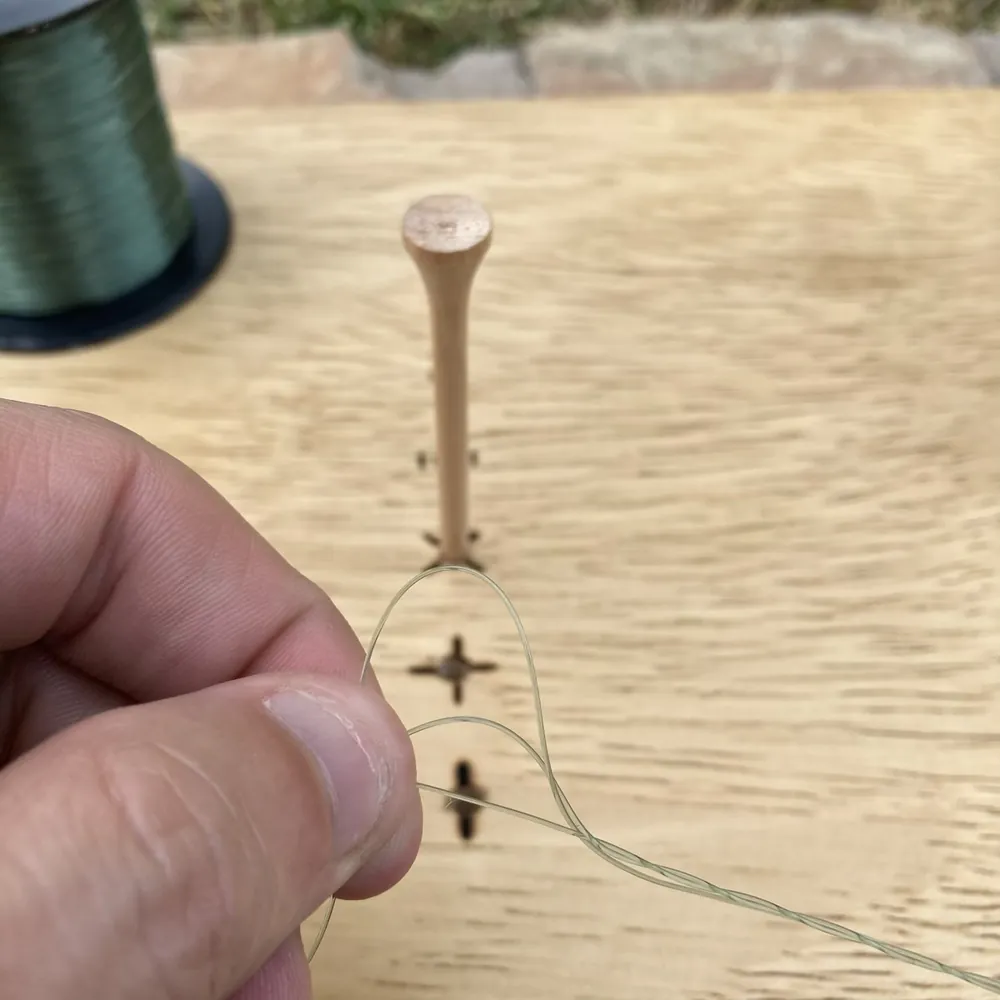

Thread: Keep the center opening of the twists clear with your finger. Take the line off the top triangle pin and push that loop through the center of your twists. [00:03:20]
Tighten: Hook the loop back over the triangle pin for leverage and pull the main line tight. The dropper loop will form perfectly in the center. [00:03:32]

Step 5: Repeat for Additional Loops

Most surf leaders use two droppers. To tie the second one:

Slide the line up so the knot of the first loop is at the starting position. [00:04:09]
Repeat the routing, twisting, and tightening process.

Step 6: Finish the Leader

Measure: Pull the line to the final grommet pins to establish the correct length for the tag end. [00:05:06]
Final Knot: Cut the line and tie a Perfection Loop or attach a swivel at the top. [00:05:21]

Why Use This Board?

Consistency is the primary benefit. Using the board ensures your hooks are always the same distance apart, which prevents them from tangling in the surf. The system is measured so that larger loops (like 5-inch) automatically have more spacing (like 12-inch) to keep hooks separated. [00:04:48]
