DIY PVC Arrow Quiver for Target Practice

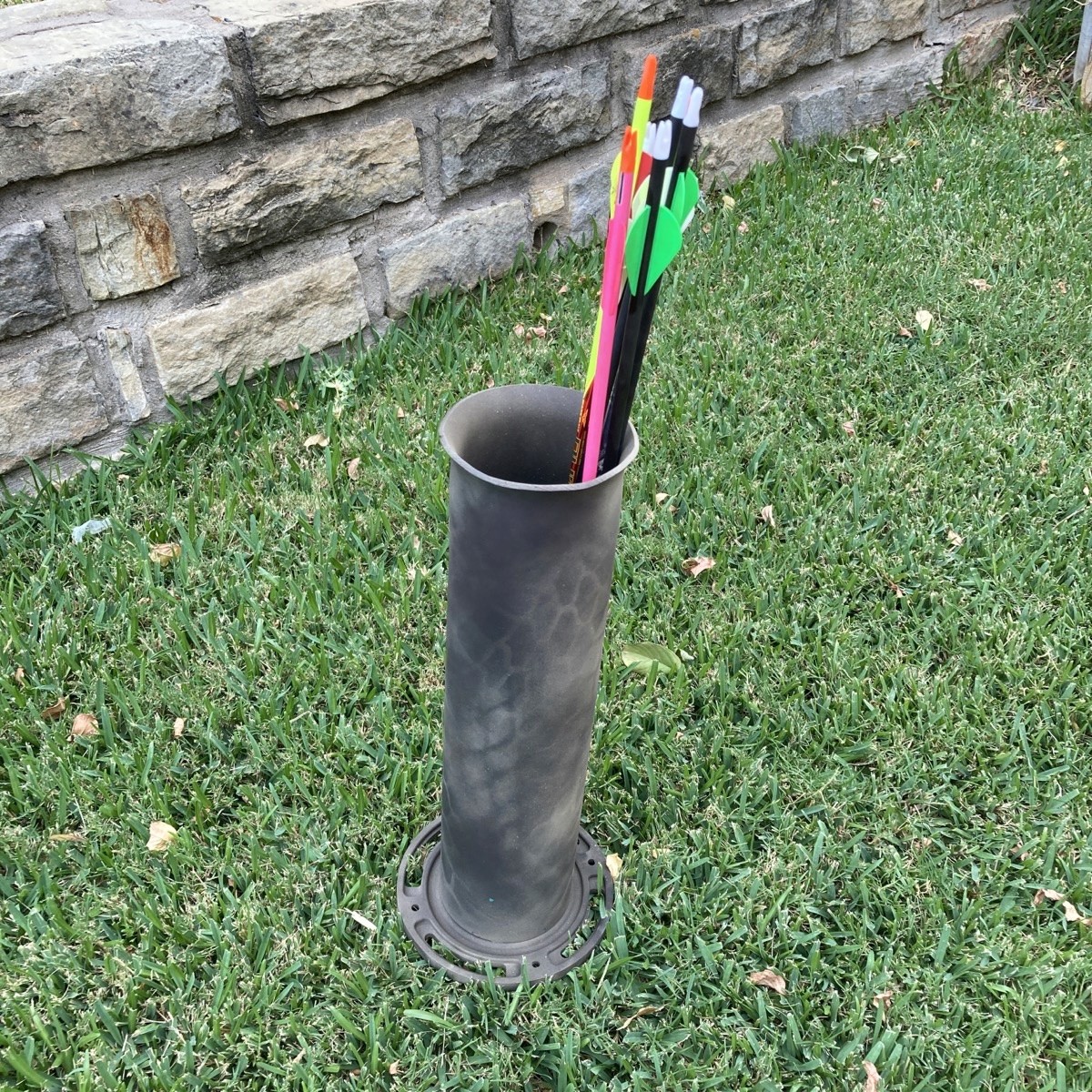

If you're looking for a simple, stable way to hold your arrows while target shooting, you can build a ground quiver using leftover PVC or drainage pipe. This design uses a sturdy floor flange as a base, making it perfect for the backyard or the range.

Materials Needed

4” Pipe: 18-inch length. Drainage tube (green) or standard PVC works, but ensure your flange matches the outer diameter. [00:00:10]
ABS 3″ or 4″ Closet Flange: This serves as the heavy base to keep the quiver upright.
Tools: Heat gun, glass bottle (like an apple juice bottle) for flaring, and sandpaper.

Step 1: Cut the Pipe to Length

Measure and cut an 18-inch length of the 4” pipe. Cut slowly to ensure the blade doesn't drift, resulting in a square edge. [00:00:23]

Pro Tip: Use sandpaper to remove any burrs and round off the sharp inside corners of the pipe. This prevents your arrows from scraping or getting damaged when you drop them in. [00:00:29]

Step 2: Attach the Flange

Hammer the floor flange onto one end of the pipe to form the base. Using a rubber mallet helps prevent cracking the plastic. If you are using standard white PVC and the fit is loose, you can secure it with a screw. [00:00:46]

Step 3: Flare the End of the Pipe

Flaring the top edge of the pipe makes it easier to insert arrows and gives the quiver a finished look.

Evenly heat the top end of the pipe with a heat gun until the plastic becomes soft and slightly shiny. [00:01:00]
Press the heated end down onto a tapered glass bottle (an apple juice bottle or glass measuring cup works well) to flare the edge outward. [00:01:07]

Bonus: Camo Paint Job

To give the quiver a professional look, you can apply a custom camo pattern:

Apply a dark base coat and add tan stripes. [00:01:21]
Use a cargo net as a stencil. Wrap it around the pipe and spray black or contrasting colors through the mesh to create a "Kryptek" style camo pattern. [00:01:32]

Wrapping Up

This is a quick weekend project that provides a dedicated spot for your arrows, keeping them off the ground and within easy reach during practice sessions. It’s durable, functional, and can be customized to match the rest of your archery gear.
